Woodturning Carbide Inserts

Replaceable carbide inserts for woodturning tools and lathe tool holders. Available in round, square, diamond, teardrop, and other common shapes for roughing, finishing, profiling, and hollowing in woodturning applications. Suitable for DIY wood lathes, professional turning tools, and custom holder systems.

Woodturning Carbide Inserts

Persistools woodturning carbide inserts are replaceable cutting tips designed for woodturning tools used on manual and automatic wood lathes.

These inserts are commonly installed on turning tool holders for shaping wood into round or decorative forms such as:

Table legs
Chair parts
Wooden bottles
Bowls
Vases
Hollow forms
Artistic wood pieces
Decorative wood components

Compared with standard woodworking inserts used in cutterheads or planer systems, woodturning carbide inserts are designed specifically for lathe turning operations, where the cutting edge is presented to a rotating wood workpiece by hand tools or holder-based turning systems.

Common Insert Shapes

Woodturning carbide inserts are available in several common shapes, each suitable for different cutting tasks.

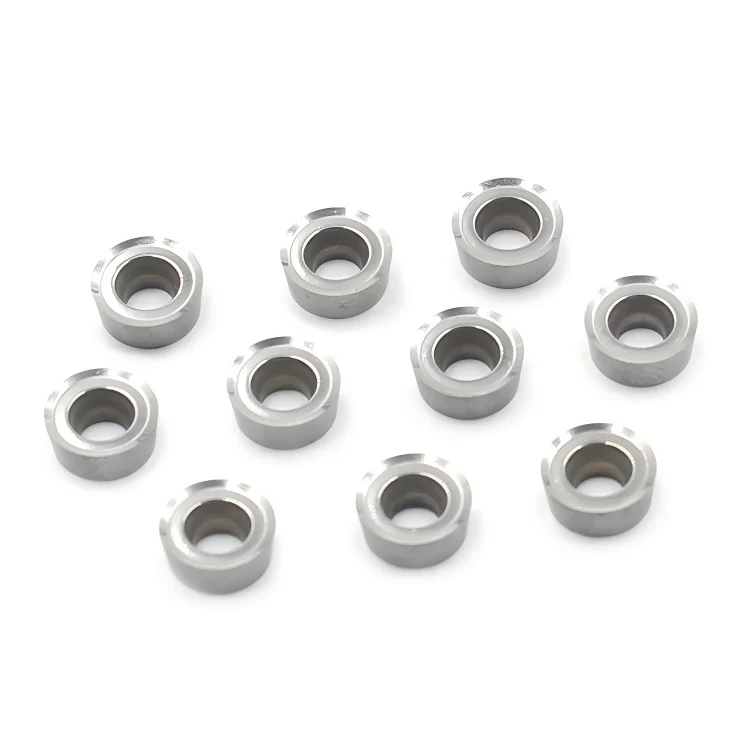

Round Inserts
Widely used for smooth turning, finishing, and general shaping.
The round edge provides multiple cutting positions and is suitable for curved surfaces and continuous cutting.

Square Inserts
Often used for general turning and controlled material removal.
Different corners can be indexed when worn, extending service life.

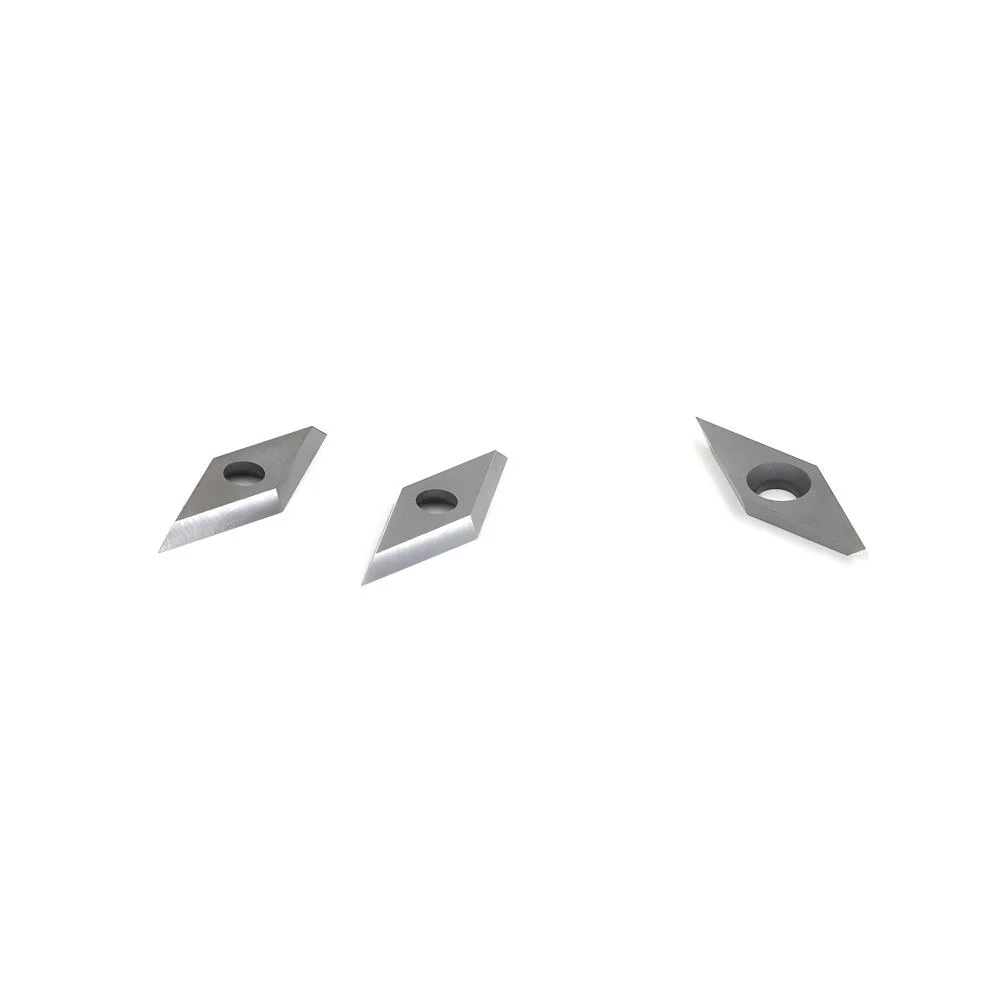

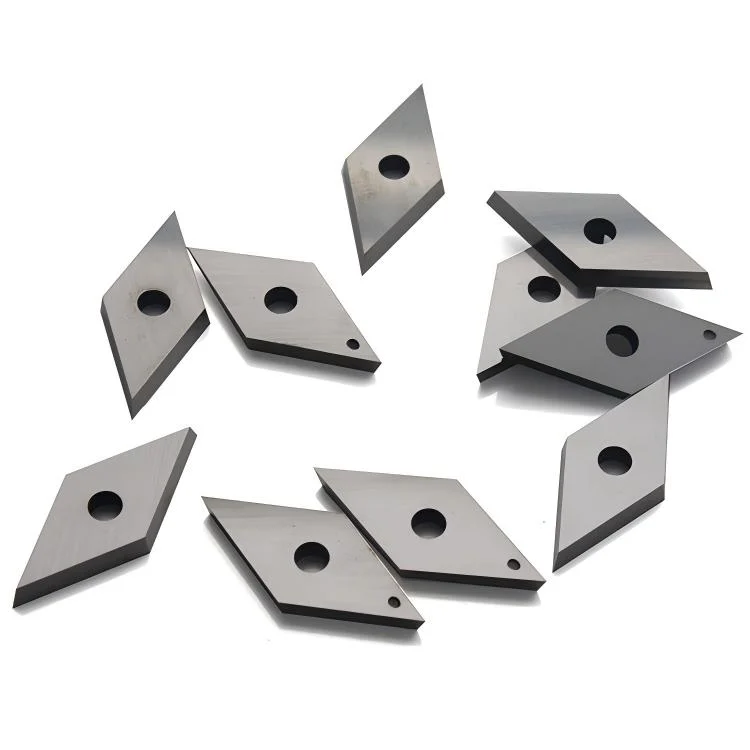

Diamond Inserts
Suitable for detail turning, profiling, and finer access into corners or transition areas.
This is one of the most common woodturning insert shapes.

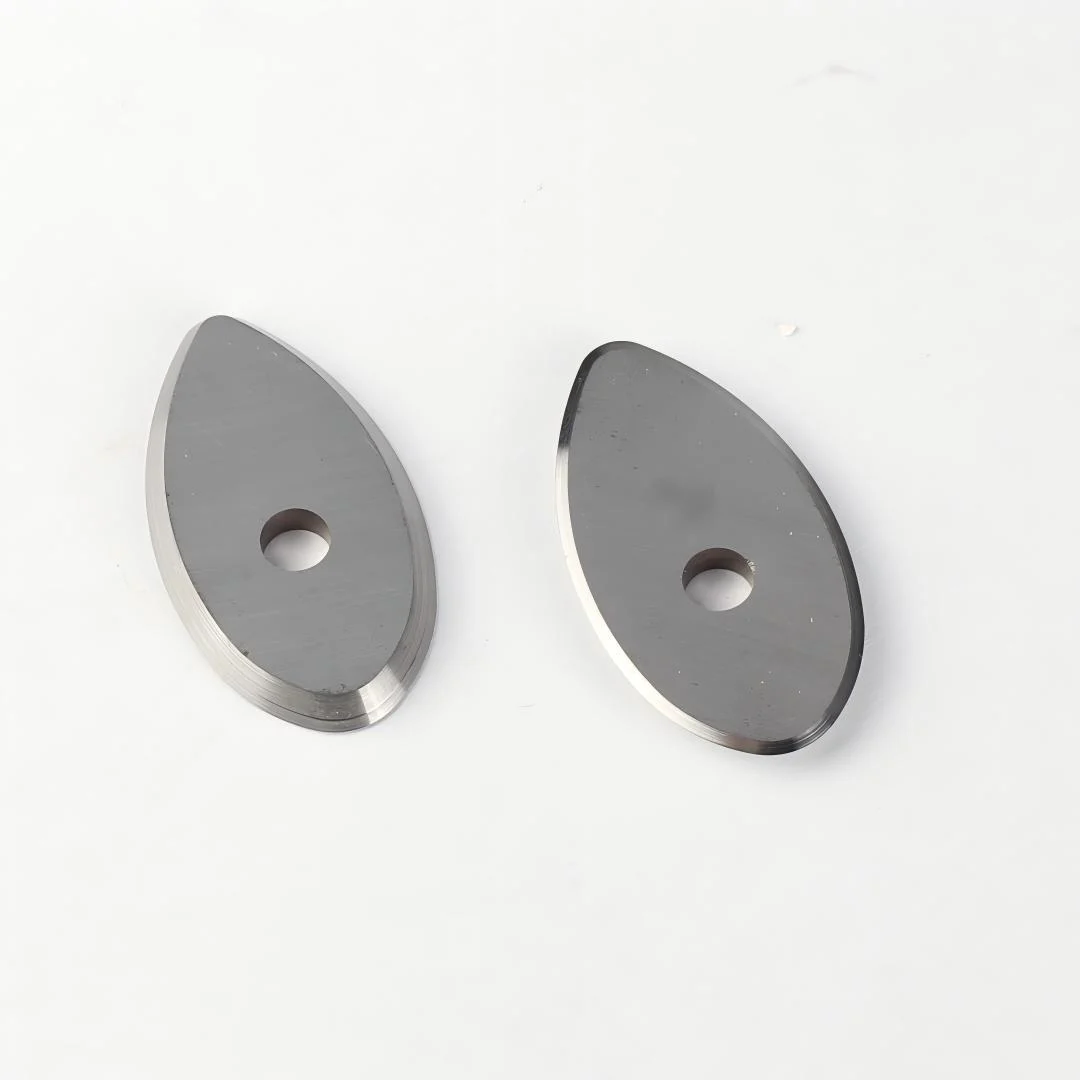

Teardrop / Radius Inserts
Used for contour work, curved profiles, and shaped surfaces where a more specific cutting edge geometry is preferred.

Custom Shapes
Custom insert shapes can be supplied according to holder design or special turning requirements.

Designed for Dry Woodturning

Most woodturning carbide inserts are used in dry turning applications.

They are suitable for both hobby and production use, including:

DIY woodturning
Professional woodturning
Custom craft production
Furniture component turning
Decorative turning
Repetitive lathe work

Because woodturning typically involves dry machining, the cutting edge must provide a practical balance of:

Sharpness
Edge retention
Wear resistance
Stability
Easy indexing or replacement

Compatible with Common Tool Holders

Woodturning carbide inserts are designed to fit a wide range of common insert-type woodturning tool holders.

They can be used with:

Standard woodturning tool holders
DIY carbide turning tools
Commercial insert turning tools
Automated turning holders
Special custom turning tools

Replacement inserts can be manufactured according to:

Existing insert samples
Insert dimensions
Screw-hole size
Holder seat geometry
Original tool specifications

This allows compatibility not only with common market-standard holders, but also with custom or special holder systems from individual manufacturers.

Tungsten Carbide Construction

Most woodturning inserts are manufactured from tungsten carbide.

Carbide provides:

Good wear resistance
Stable cutting edge
Long service life
Convenient insert replacement
Suitability for both softwood and hardwood turning

Different carbide grades and edge geometries can be selected according to cutting style, holder structure, and wood material.

Insert Shape	Typical Size	Thickness	Hole Type	Material	Typical Application
Round Insert	Ø10–16 mm	2.0–3.5 mm	Center Hole	Tungsten Carbide	Finishing / General turning
Square Insert	10 × 10 mm	2.0–3.0 mm	Center Hole	Tungsten Carbide	General turning
Square Insert	12 × 12 mm	2.0–3.5 mm	Center Hole	Tungsten Carbide	Roughing / Shaping
Diamond Insert	28 × 10 mm Approx.	2.0–3.0 mm	Center Hole	Tungsten Carbide	Detail turning / Profiling
Teardrop Insert	Custom	2.0–3.5 mm	Center Hole	Tungsten Carbide	Curved profiles / Hollowing
Radius Insert	Custom	Custom	Center Hole	Tungsten Carbide	Decorative turning
Custom Insert	Custom	Custom	Custom	Tungsten Carbide	Special holder systems

Product Type: Woodturning Carbide Insert
Material: Tungsten Carbide
Insert Shapes: Round / Square / Diamond / Teardrop / Radius / Custom
Mounting: Center Hole / Screw Fixing
Application: Wood Lathe Turning / Profiling / Hollowing / Finishing
Use Condition: Dry Turning
Compatibility: Standard and Custom Woodturning Tool Holders
Customization: Shape, size, thickness, screw hole, carbide grade, and edge geometry available on request.

What are woodturning carbide inserts used for?

Woodturning carbide inserts are used on wood lathe turning tools for shaping, profiling, roughing, finishing, and hollowing wooden workpieces such as table legs, bowls, bottles, and decorative wood items.

What insert shapes are available?

Common shapes include round, square, diamond, and teardrop inserts. Different shapes are suitable for different turning operations, and custom insert shapes can also be manufactured according to holder design or customer requirements.

Are these inserts compatible with standard woodturning tool holders?

Yes. Standard insert sizes and shapes can be supplied for many common woodturning tool holders. Custom inserts can also be produced for special or non-standard holder systems.

Why are carbide inserts commonly used for woodturning tools?

Carbide provides good wear resistance, stable cutting edges, and convenient replacement. Insert tools also reduce sharpening time because worn inserts can usually be rotated or replaced directly.
