TESEO Cutting Blades

TESEO Cutting Blades

Persistools supplies replacement and custom cutting blades for TESEO automated cutting and CAD/CAM systems.

The TESEO blade range includes a large number of machine-specific cutting geometries used in high-speed oscillating and tangential cutting applications.

Unlike some digital cutting systems where a small number of blade references dominate the market, TESEO uses a broad range of part numbers and blade codes for different cutting angles, thicknesses, materials, and cutting profiles.

Customers typically identify the required blade by:

• TESEO part number
• Blade code
• Original sample
• Technical drawing
• Blade dimensions
• Application material

Examples of TESEO reference formats include part numbers such as 535091720, 500003000, 550058501, 535099401, 535091822, as well as tool codes in families such as M1N, M2N, and X2N.

Multiple Blade Geometries

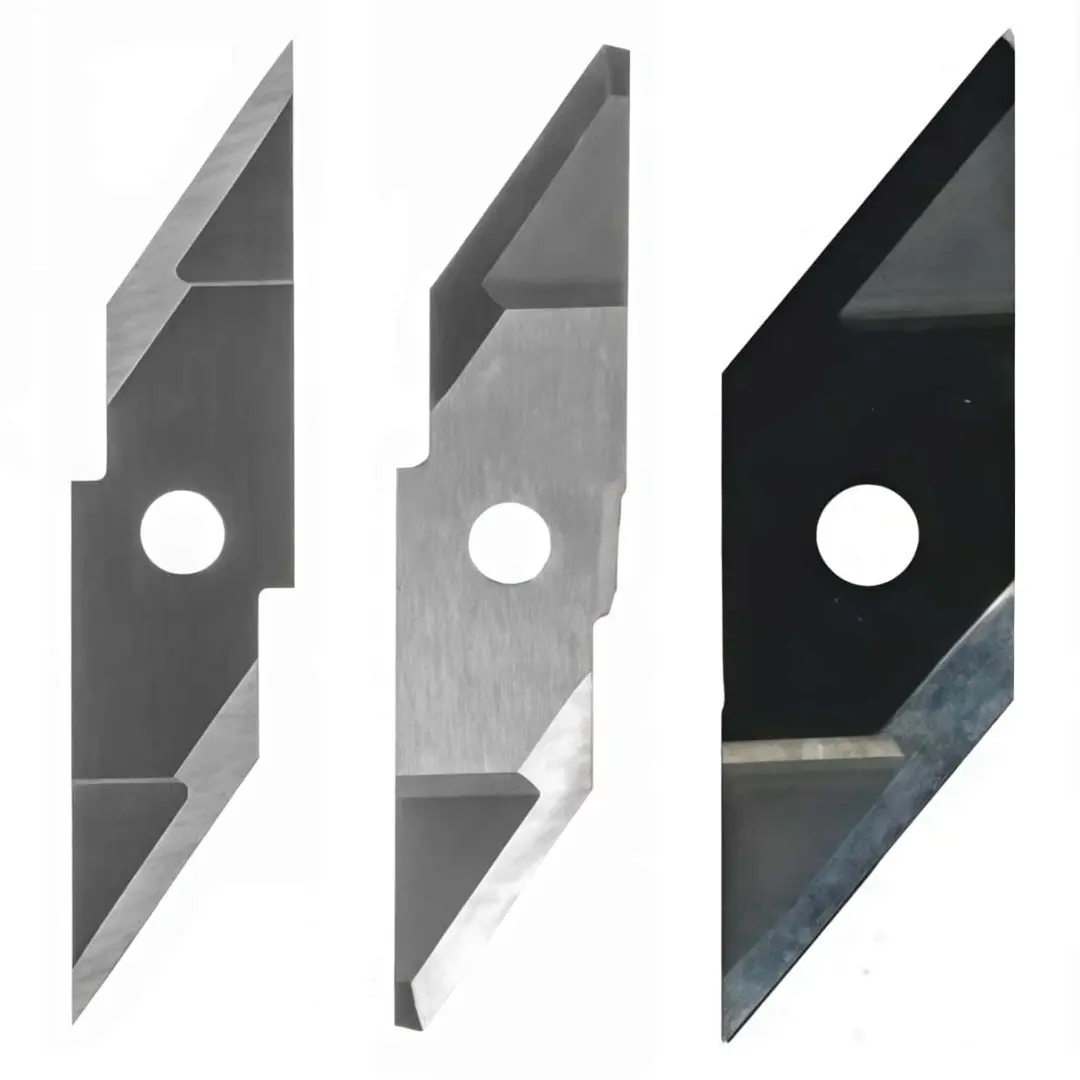

TESEO-compatible blades are available in many cutting geometries depending on the machine head and processed material.

Typical variations include:

• Single-edge blades

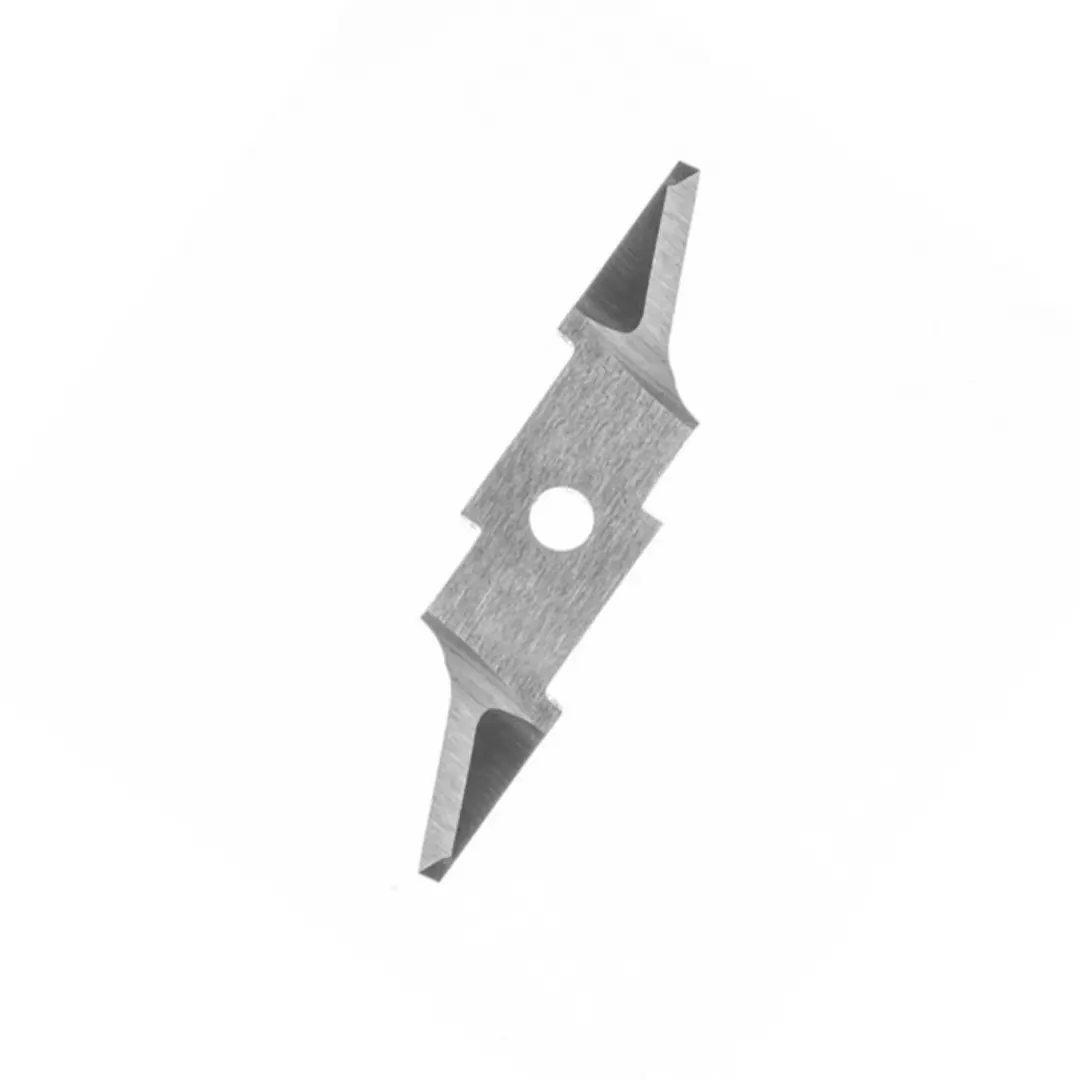

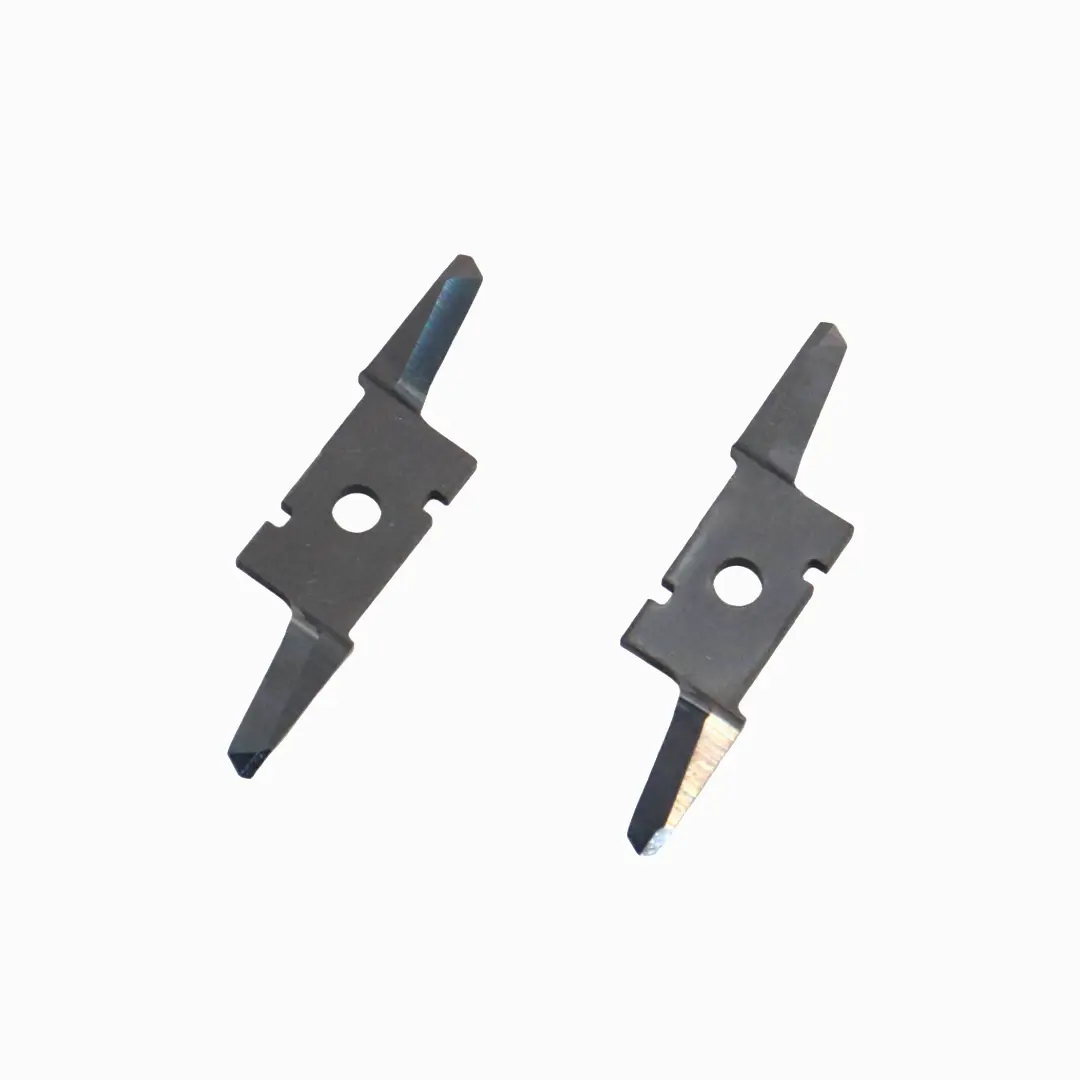

• Double-edge blades
• Pointed cutting tips
• Different cutting angles
• Narrow and wide blade profiles
• 1.0 mm and 1.5 mm thickness classes
• Oscillating and tangential cutting designs
• Special-purpose profile blades

Because many blades may appear visually similar while using different edge angles or mounting geometry, the original reference number or sample is especially important for correct replacement.

Tungsten Carbide Construction

Many TESEO blades are manufactured from solid tungsten carbide, including fine- or micro-grain carbide grades for high-frequency cutting applications.

Carbide is well suited to this type of tooling because it provides:

• High wear resistance
• Stable cutting geometry
• Sharp precision-ground edges
• Good dimensional consistency
• Long service life in repeated cutting operations

Other blade materials can also be considered for special applications, depending on geometry and toughness requirements.

Typical Applications

TESEO cutting systems are commonly used in industries such as:

• Leather processing
• Footwear manufacturing
• Automotive interiors
• Upholstery
• Technical textiles
• Synthetic leather
• Foam and backing materials
• Gasket materials
• Corrugated and packaging board
• Flexible composite materials

The correct blade geometry depends on material thickness, flexibility, cutting resistance, and the required turning radius.

Part Number and Blade Code Matching

For TESEO products, part number matching is especially important.

A customer may provide:

• A numeric TESEO reference
• An M1N / M2N / X2N blade code
• A worn original blade
• A drawing
• Basic dimensions and cutting angle

Persistools can use this information to confirm or reproduce the required geometry.

This approach is particularly useful for:

• Standard replacement blades
• Older machine models
• Difficult-to-source references
• Custom blade variants
• Modified cutting applications

Custom Manufacturing Capability

Persistools can manufacture TESEO-compatible blades according to:

• Part number
• Tool code
• Blade length
• Blade height
• Thickness
• Cutting angle
• Tip profile
• Single- or double-edge geometry
• Mounting section
• Workpiece material
• Original sample or drawing

For non-standard requirements, blade geometry can be adjusted according to the actual cutting application.
