Morse Taper Annular Cutter Adapters

Morse Taper Annular Cutter Adapters

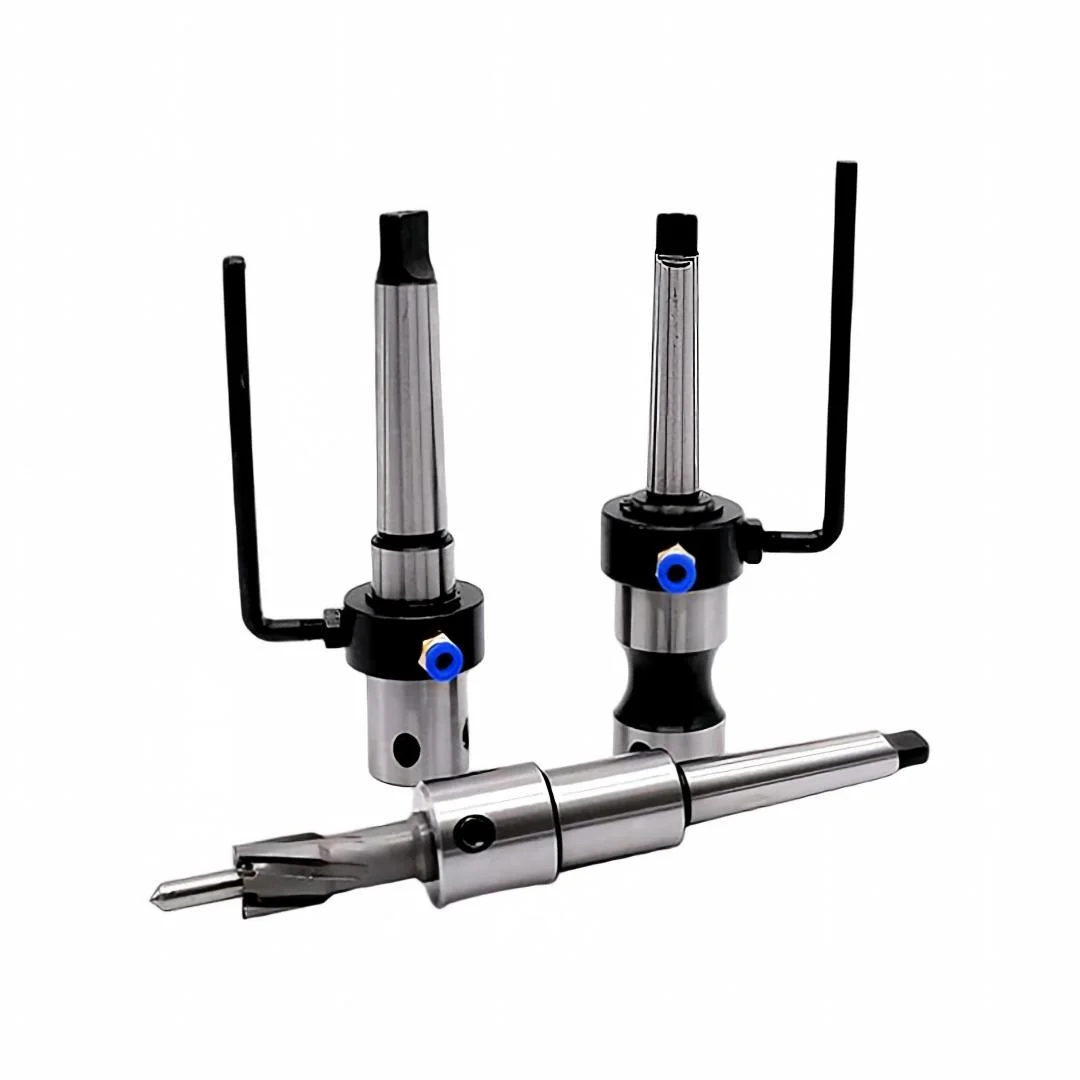

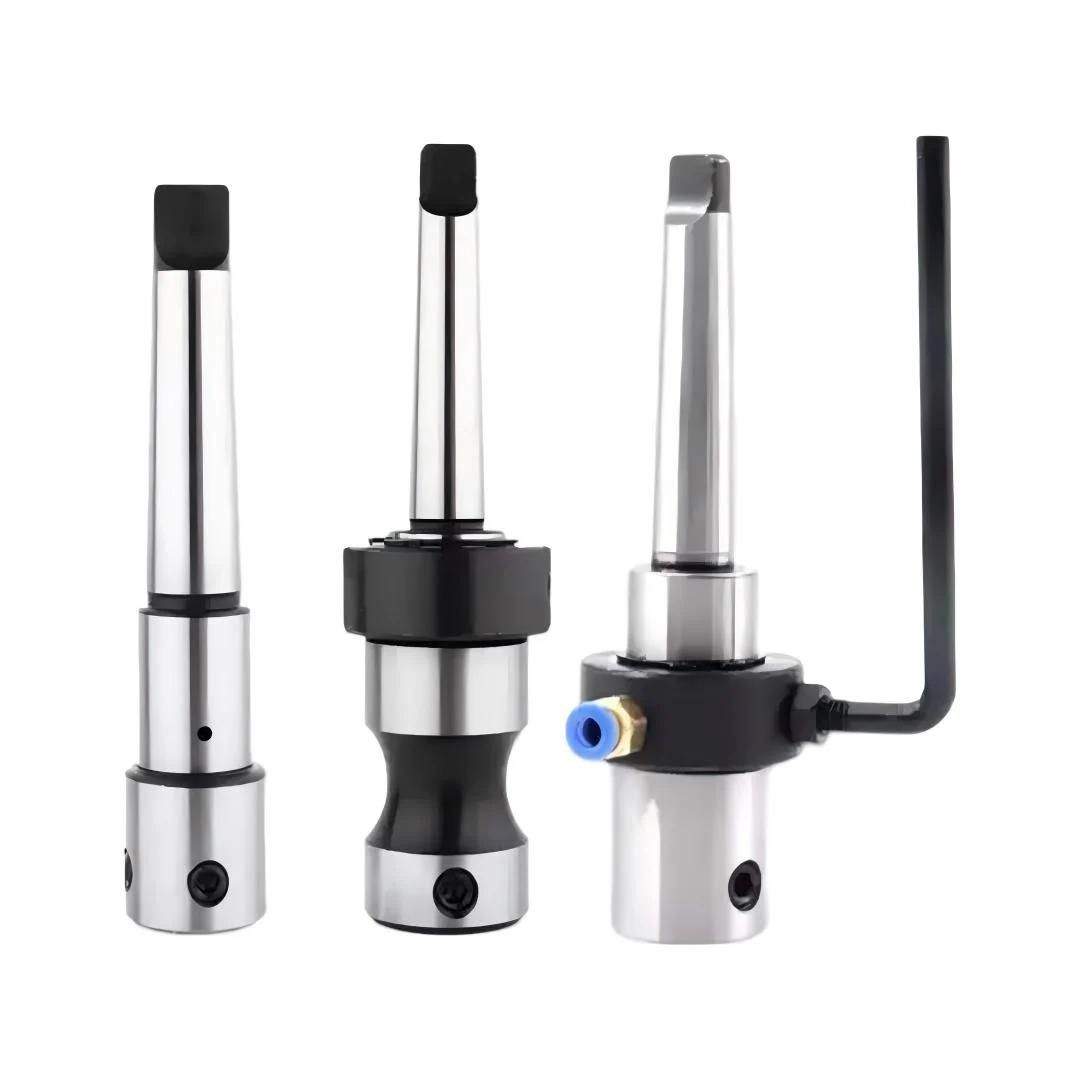

Persistools Morse taper annular cutter adapters are designed to connect drilling machines equipped with Morse taper spindles to commonly used annular cutter shank systems.

They provide a practical interface between the machine spindle and the cutter, allowing operators to use different annular cutters without replacing the complete machine-side mounting system.

These adapters are commonly used with magnetic drills, drilling machines, and workshop equipment where annular cutters need to be changed frequently.

Compatible with Common Annular Cutter Shanks

Although annular cutters are available with several connection systems, Weldon shanks and Fein-style shanks are among the most commonly used in industrial drilling.

Morse taper adapters can therefore be supplied for:

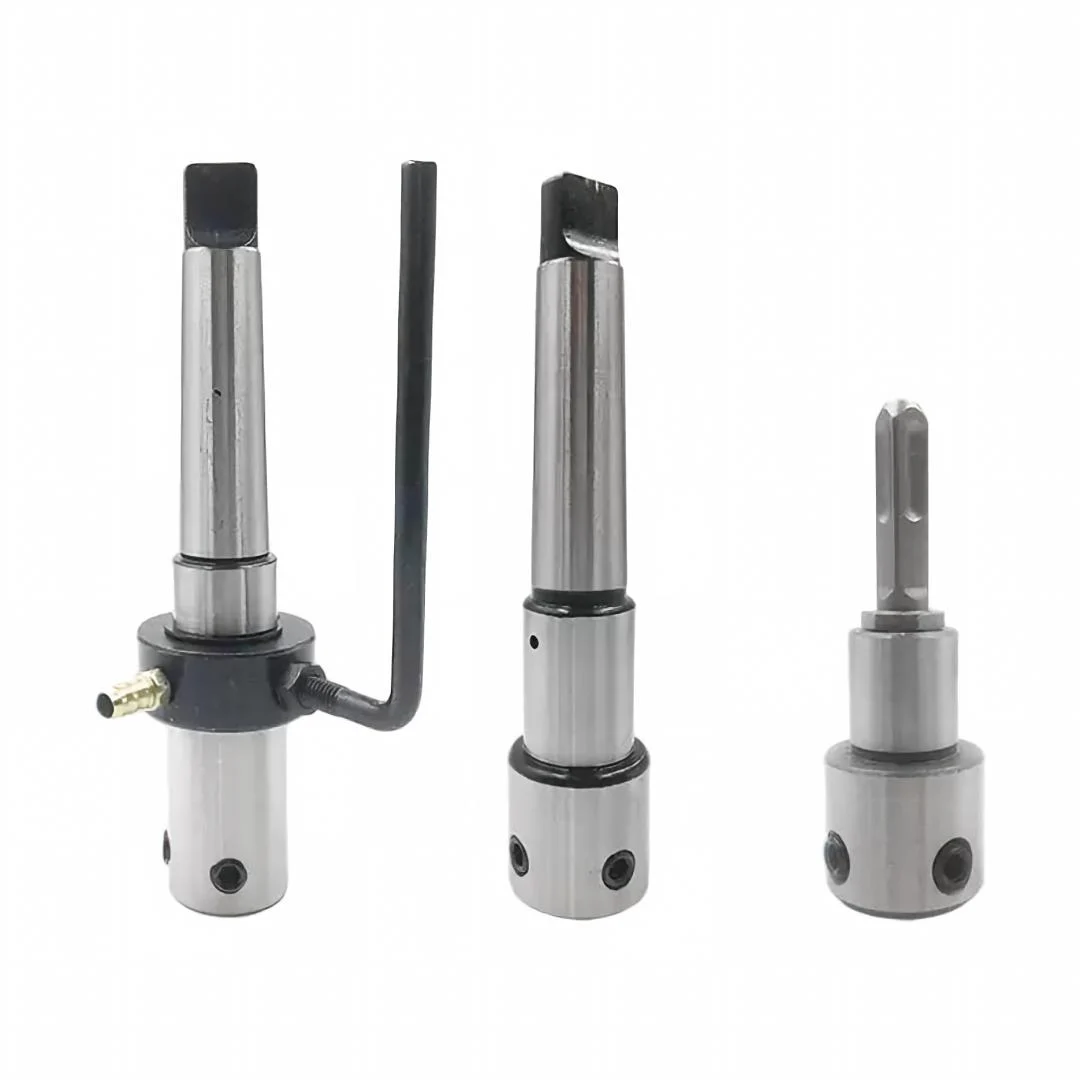

• Weldon shank annular cutters
• Fein-style annular cutters
• Other common cutter interfaces
• Custom machine-side connections

This allows one drilling machine to work with a broader range of annular cutters.

Quick Cutter Change

One of the main advantages of a dedicated adapter is simplified cutter replacement.

Instead of changing the complete arbor or searching for a different spindle connection every time a cutter type changes, the adapter remains installed on the machine while compatible annular cutters can be replaced directly.

This helps reduce:

• Tool change time
• Setup complexity
• Number of separate arbors required
• Machine downtime
• Compatibility problems between cutter and spindle

Morse Taper Machine Connection

Morse taper systems are widely used on drilling machines and machine tools because they provide a rigid and self-centering spindle connection.

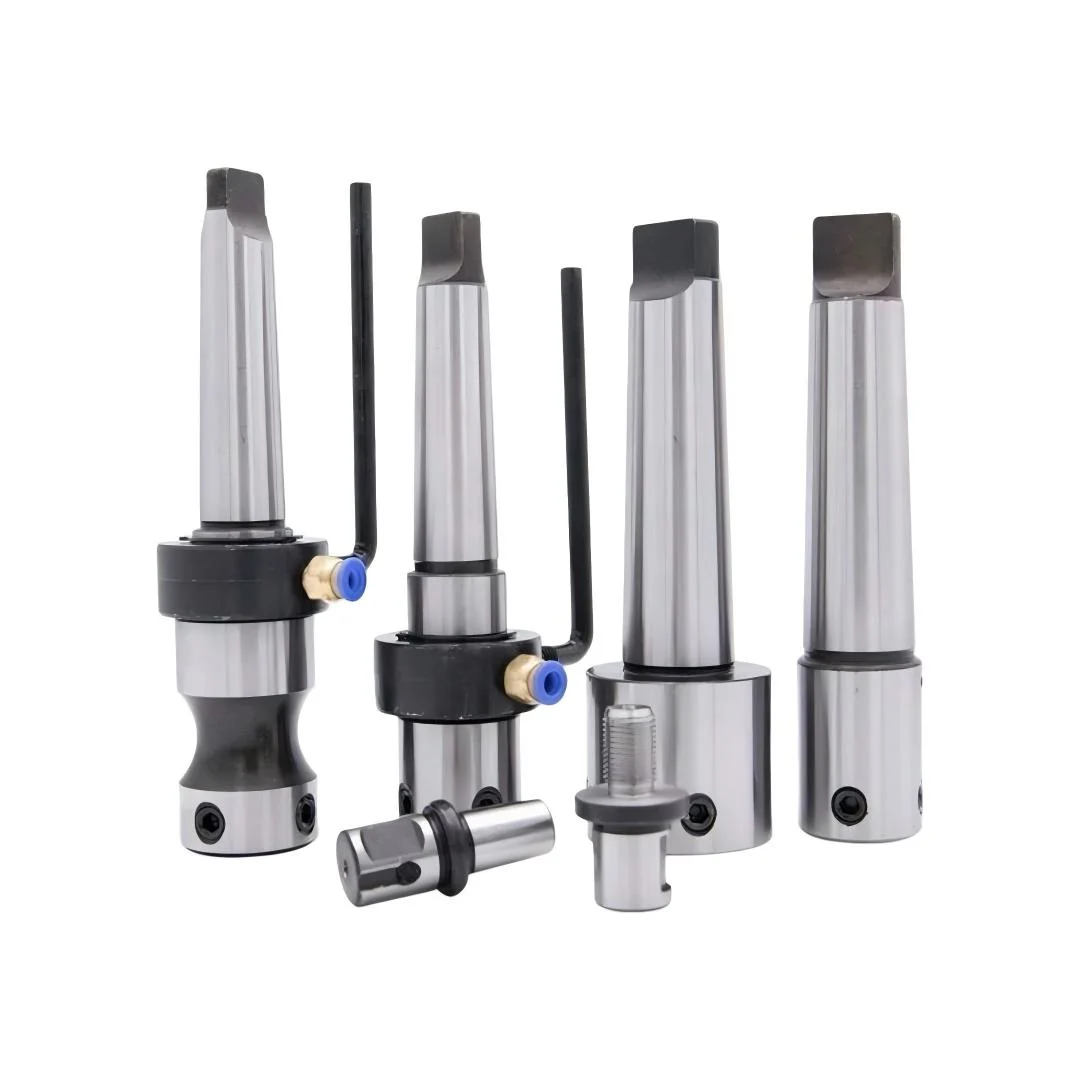

Persistools adapters can be produced for common Morse taper sizes such as:

• MT2
• MT3
• MT4
• Custom taper configurations

The correct taper size should be selected according to the drilling machine spindle.

Designed for Annular Cutter Systems

The adapter must maintain accurate alignment between the machine spindle and cutter.

Important manufacturing factors include:

• Morse taper accuracy
• Concentricity
• Cutter interface dimensions
• Axial positioning
• Retention structure
• Pilot pin compatibility
• Coolant passage, where required

Good dimensional control helps reduce cutter runout and improves drilling stability.

Typical Applications

Morse taper annular cutter adapters are commonly used for:

• Magnetic drilling
• Bench drilling machines
• Radial drilling machines
• Workshop drilling
• Structural steel fabrication
• Machinery manufacturing
• Maintenance and repair
• Annular cutter conversion applications

Standard and custom adapters can be manufactured according to the machine spindle, cutter shank, and drilling requirements.
