Edge Banding Trimming Blades

Edge Banding Trimming Blades

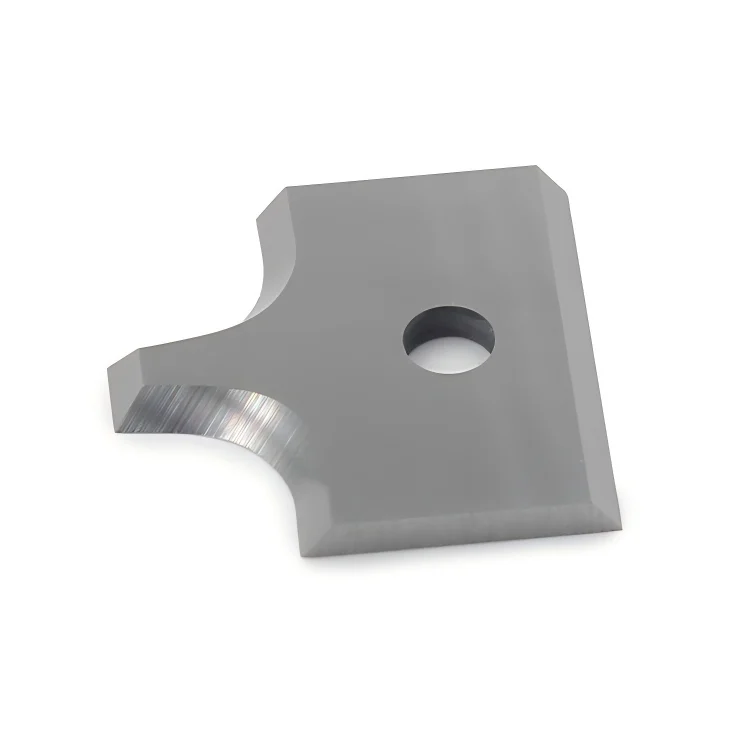

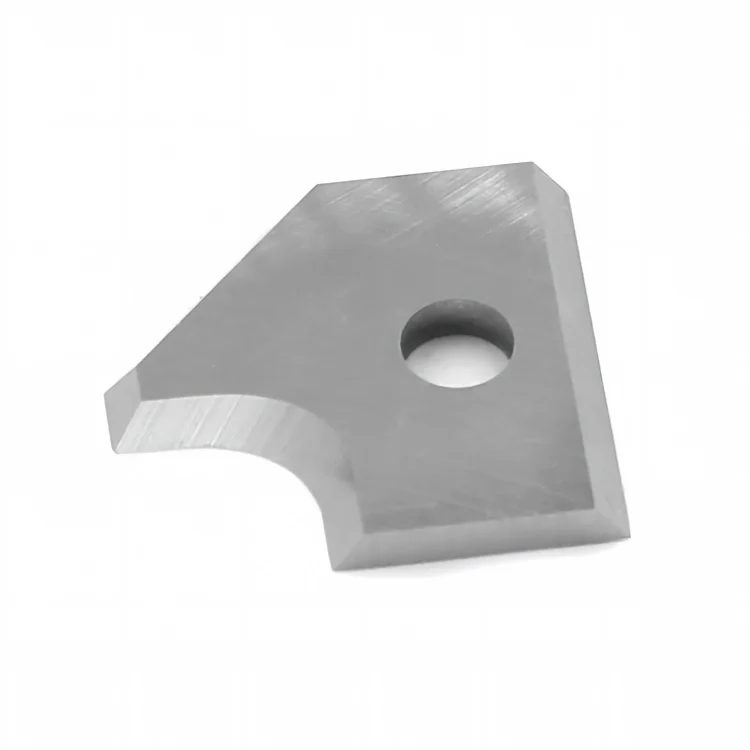

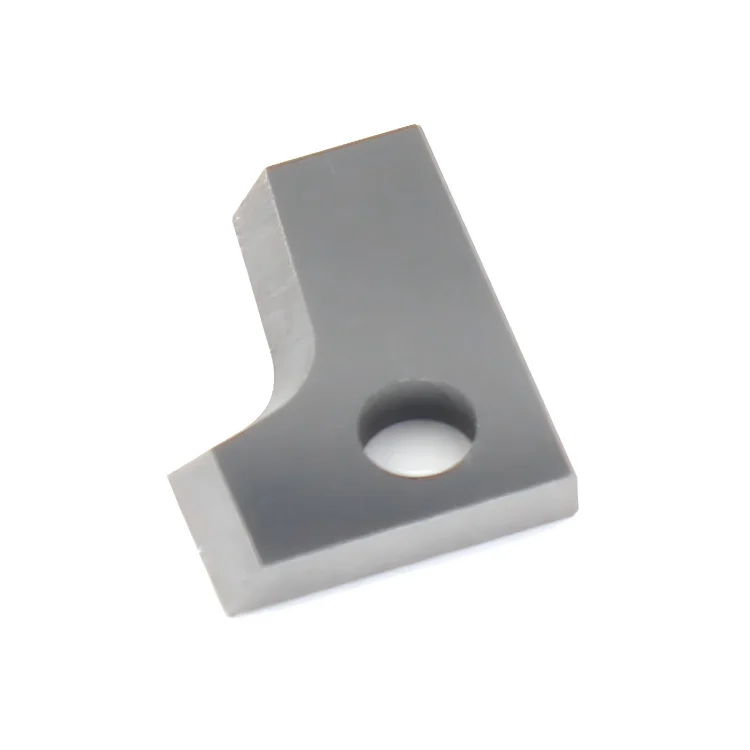

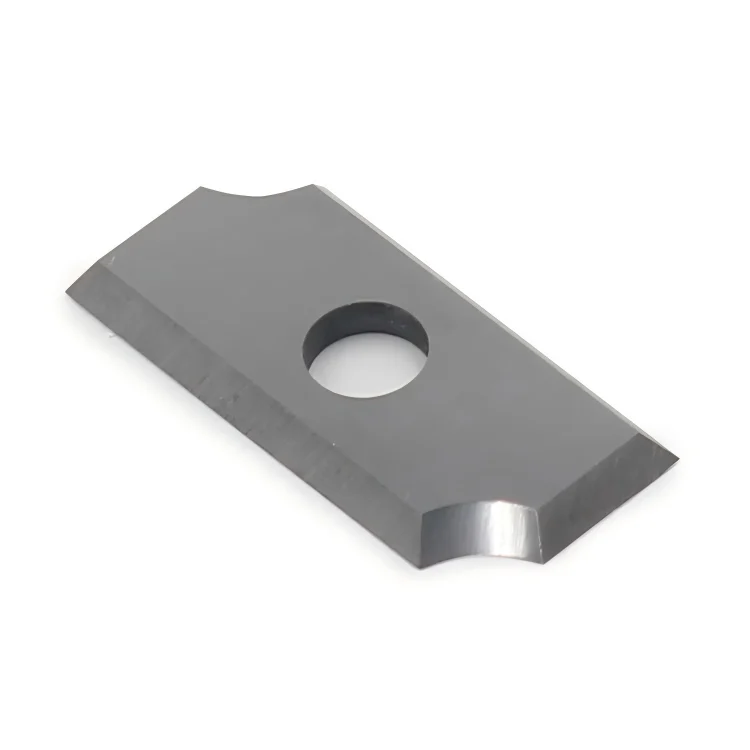

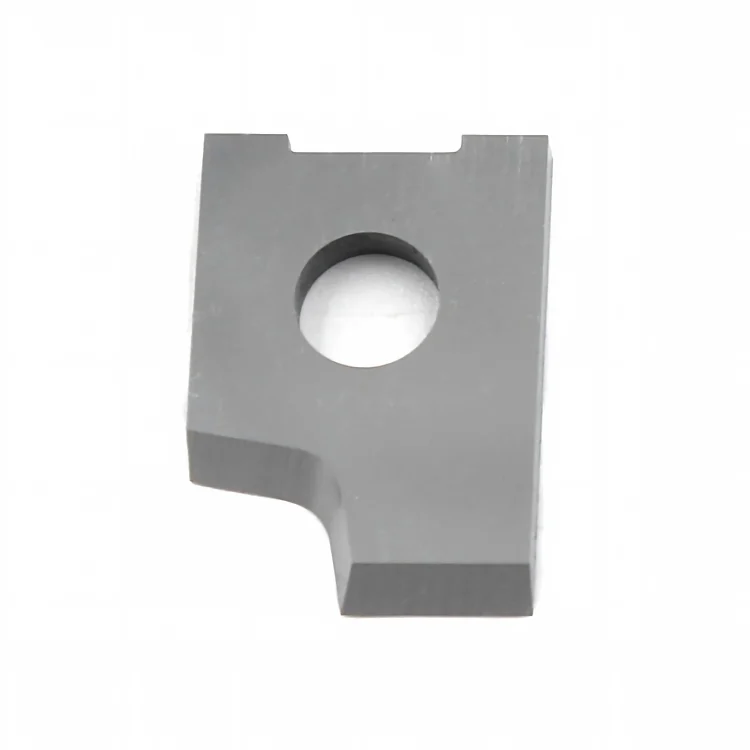

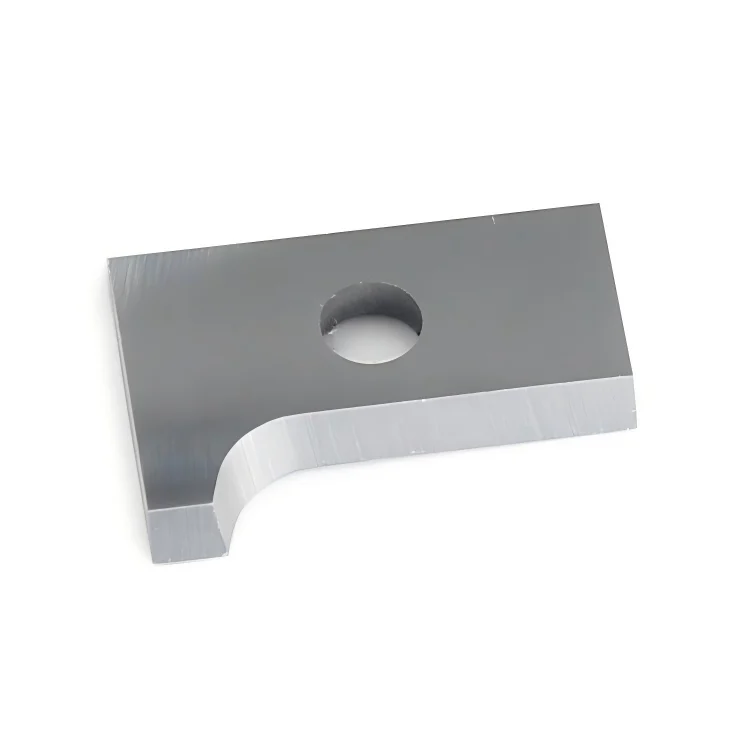

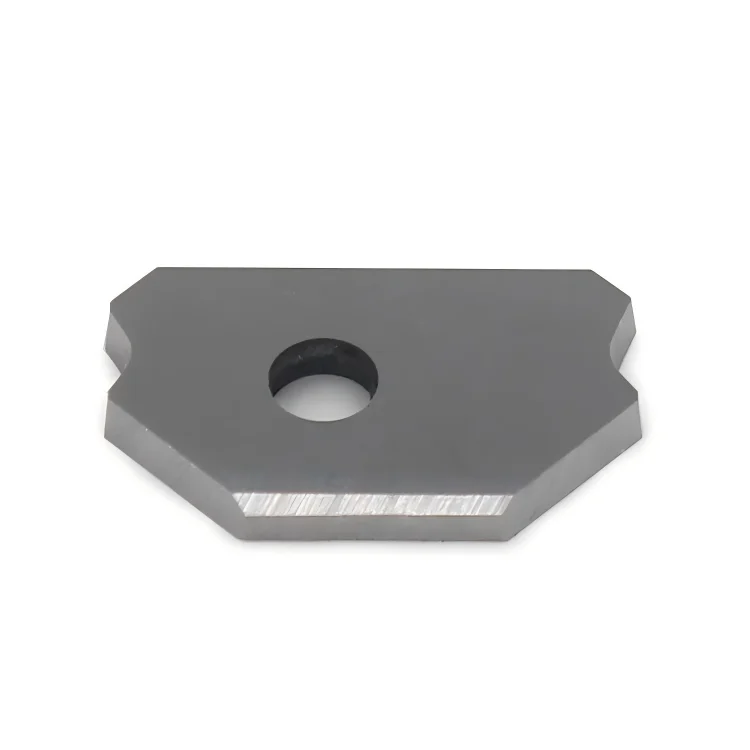

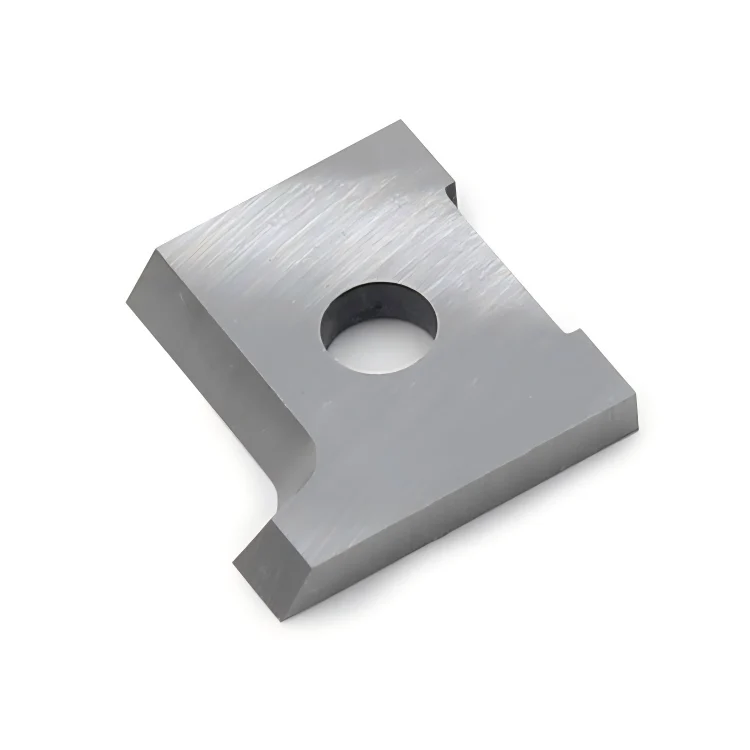

Persistools edge banding trimming blades are precision cutting blades used in edge banding machines to trim excess edge band material after the band has been applied to the panel.

After edge banding, the applied strip usually stands slightly proud of the panel surface or side edge.
The trimming unit removes the excess material and shapes the edge into a smooth, controlled radius, improving both the final appearance and the touch of the finished board.

These trimming blades are widely used in the production of:

• Panel furniture
• Cabinets
• Wardrobes
• Office furniture
• Decorative panels
• Kitchen furniture
• Interior panels
• Other edge-banded board products

Designed for Edge Band Finishing

The main function of the trimming blade is not only to cut away the excess banding material, but also to shape the finished edge correctly.

A properly manufactured trimming blade helps achieve:

• Clean trimming of excess edge band
• Smooth transition between panel and edge band
• Rounded finished edge
• Consistent edge appearance
• Improved touch and visual quality
• Stable trimming performance during continuous production

This is especially important in furniture manufacturing where final edge quality directly affects the appearance and perceived quality of the finished product.

Solid Carbide and PCD-Tipped Options

Most conventional trimming blades are manufactured from solid tungsten carbide.

Solid carbide provides:

• Good wear resistance
• Sharp cutting edge
• Stable trimming performance
• Suitable service life in general edge banding production

With the increasing use of more demanding edge band materials, some trimming blades are now produced with carbide bodies and PCD cutting edges.

PCD-tipped trimming blades provide:

• Higher wear resistance
• Longer tool life
• Better edge retention
• Stable trimming quality over longer production runs
• Improved performance on difficult or abrasive edge band materials

This makes them particularly suitable for high-volume production and more demanding edge banding conditions.

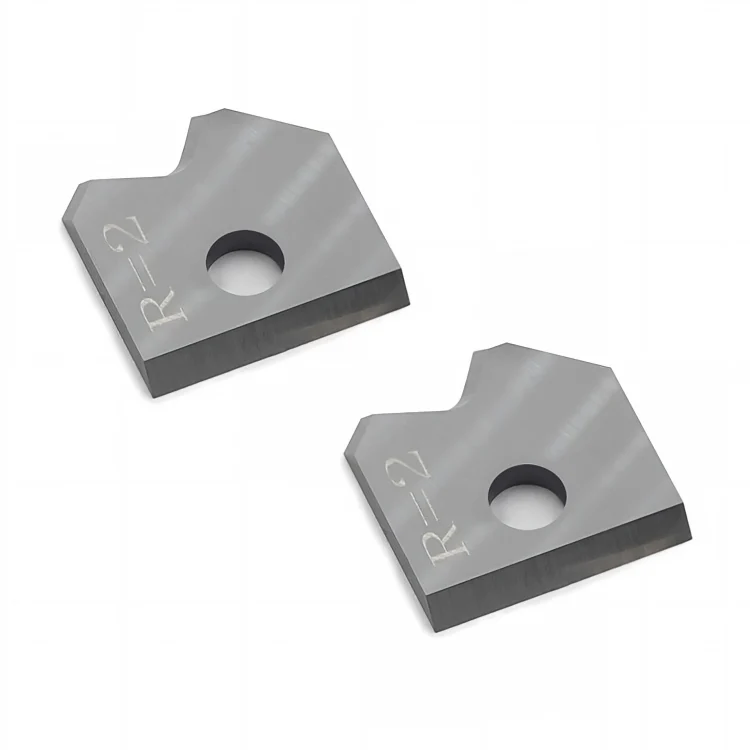

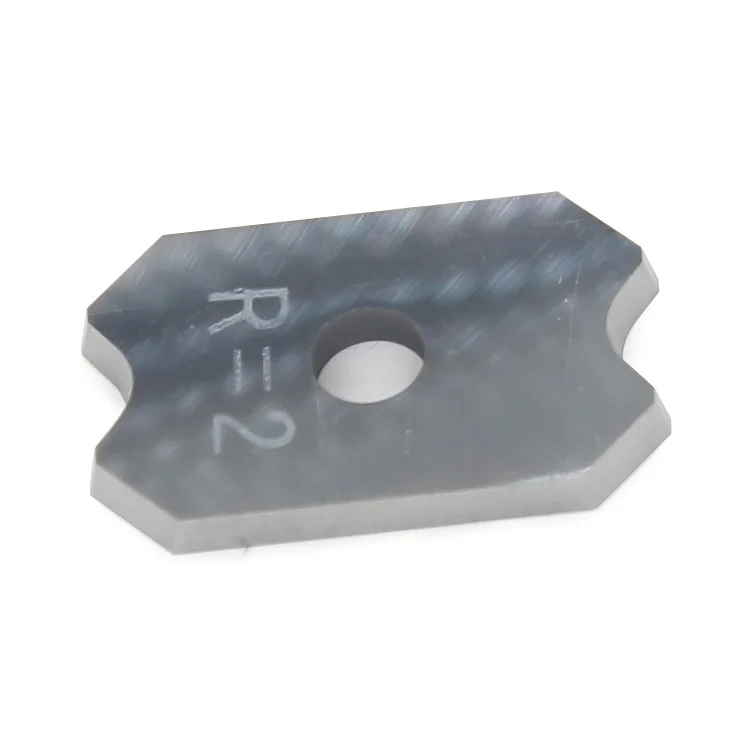

Radius Variations from R1 to R4

Although the overall blade shape may remain similar, the most important variation is usually the cutting-edge radius.

Common radius options include:

• R1
• R2
• R3
• R4

Different radii are selected according to the panel thickness, edge band thickness, desired finished profile, and machine setup.

A smaller radius is often used for thinner boards or lighter edge rounding, while a larger radius is suitable for thicker panels or stronger rounded-edge effects.

Machine-Specific Shapes

Although many edge banding trimming blades follow similar design principles, exact blade shape and mounting geometry may vary depending on the edge banding machine manufacturer and model.

Important dimensional factors include:

• Blade outline
• Overall length
• Width
• Thickness
• Mounting holes
• Hole spacing
• Edge radius
• Cutting angle
• Left-hand / right-hand configuration

For this reason, replacement trimming blades are usually supplied according to:

• Original sample
• Customer drawing
• Machine brand
• Machine model
• Existing blade dimensions

Persistools can manufacture standard and custom trimming blades for different edge banding systems.
