Corrugated Box Flap Corner Cutters

Corrugated Box Flap Corner Cutters

Persistools corrugated box flap corner cutters are replaceable cutting blades used in corrugated box converting equipment to remove small sections from the corners or edges of carton flaps.

This operation is commonly used when the flap geometry requires additional clearance during folding.

By trimming a controlled amount of material from selected flap areas, the cutter helps reduce interference between overlapping flaps and allows the carton to fold and close more smoothly.

These cutters are also commonly referred to as anvil cutters in certain corrugated converting systems.

Why Flap Corner Cutting Is Used

Not every corrugated box requires corner trimming.

The process is typically used when the box structure, flap length, board thickness, or packaging design creates potential interference during folding.

The trimming operation can help:

• Reduce flap-to-flap interference
• Improve folding clearance
• Reduce edge rubbing and compression
• Prevent local board deformation
• Improve closing consistency
• Produce a cleaner finished carton

It is particularly useful for packaging designs where appearance, folding quality, and dimensional consistency are more important.

Replaceable Steel Blade

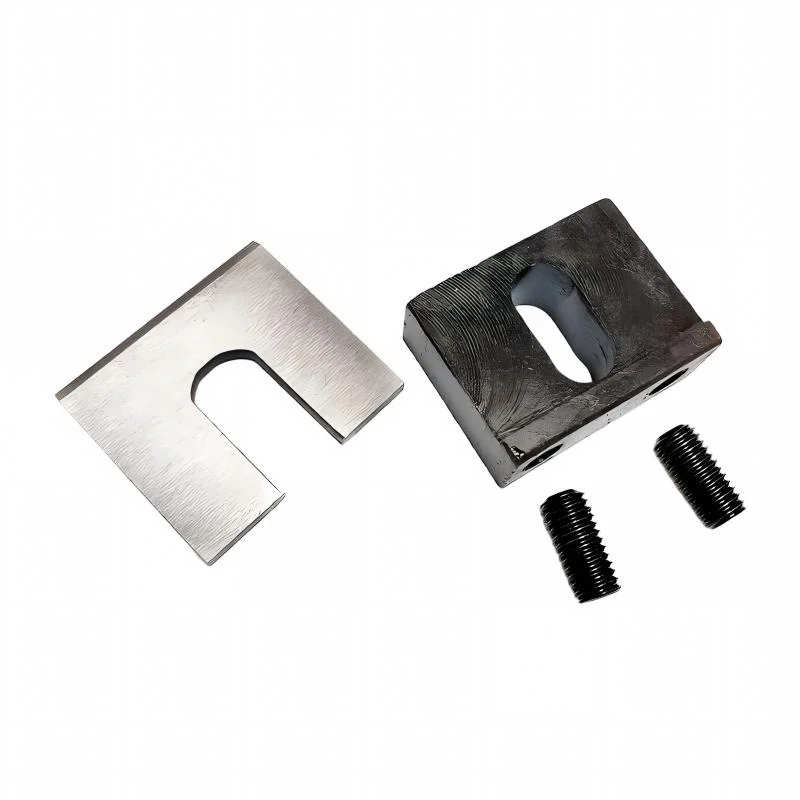

The cutter itself is a relatively simple precision steel blade installed in a dedicated holder.

Compared with large corrugated knives, the cutting load is relatively localized, so a properly manufactured steel blade can provide reliable service over long production cycles.

Typical features include:

• Hardened steel construction
• Precision-ground cutting edge
• Replaceable design
• Regrindable cutting edge
• Machine-specific mounting geometry

When the cutting edge becomes dull, the blade can normally be reground and reused before final replacement.

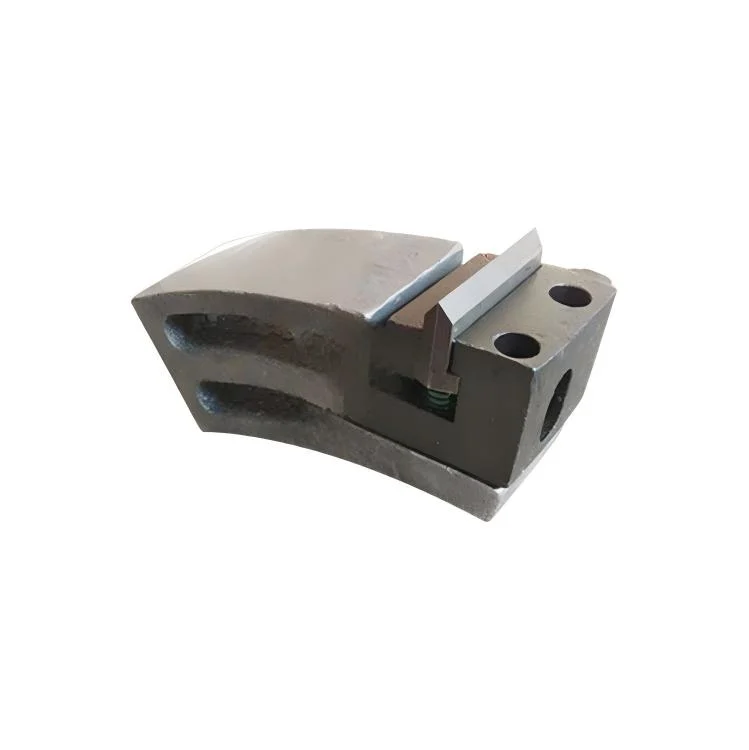

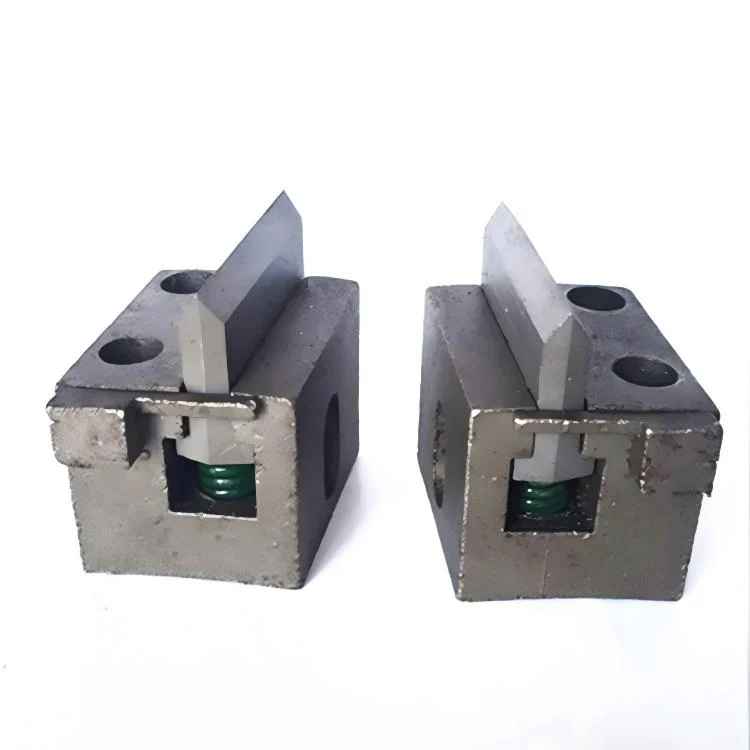

Installed in Anvil Cutter Holders

The flap corner cutter is mounted in a dedicated holder positioned on the converting machine.

The holder controls the blade position and cutting geometry, while the replaceable blade performs the actual trimming operation.

Because different machine manufacturers use different holder structures and cutting layouts, most replacement cutters are supplied according to:

• Machine model
• Existing cutter dimensions
• Original sample
• Customer drawing
• Holder dimensions

Persistools can manufacture replacement cutters to match existing anvil cutter systems.

Typical Applications

These cutters are commonly used in:

• Corrugated box converting
• Flexo folder-gluer lines
• Printing-slotting machines
• Carton forming systems
• High-quality packaging production
• Custom corrugated box manufacturing

They are especially useful where flap geometry requires additional clearance before folding and closing.
