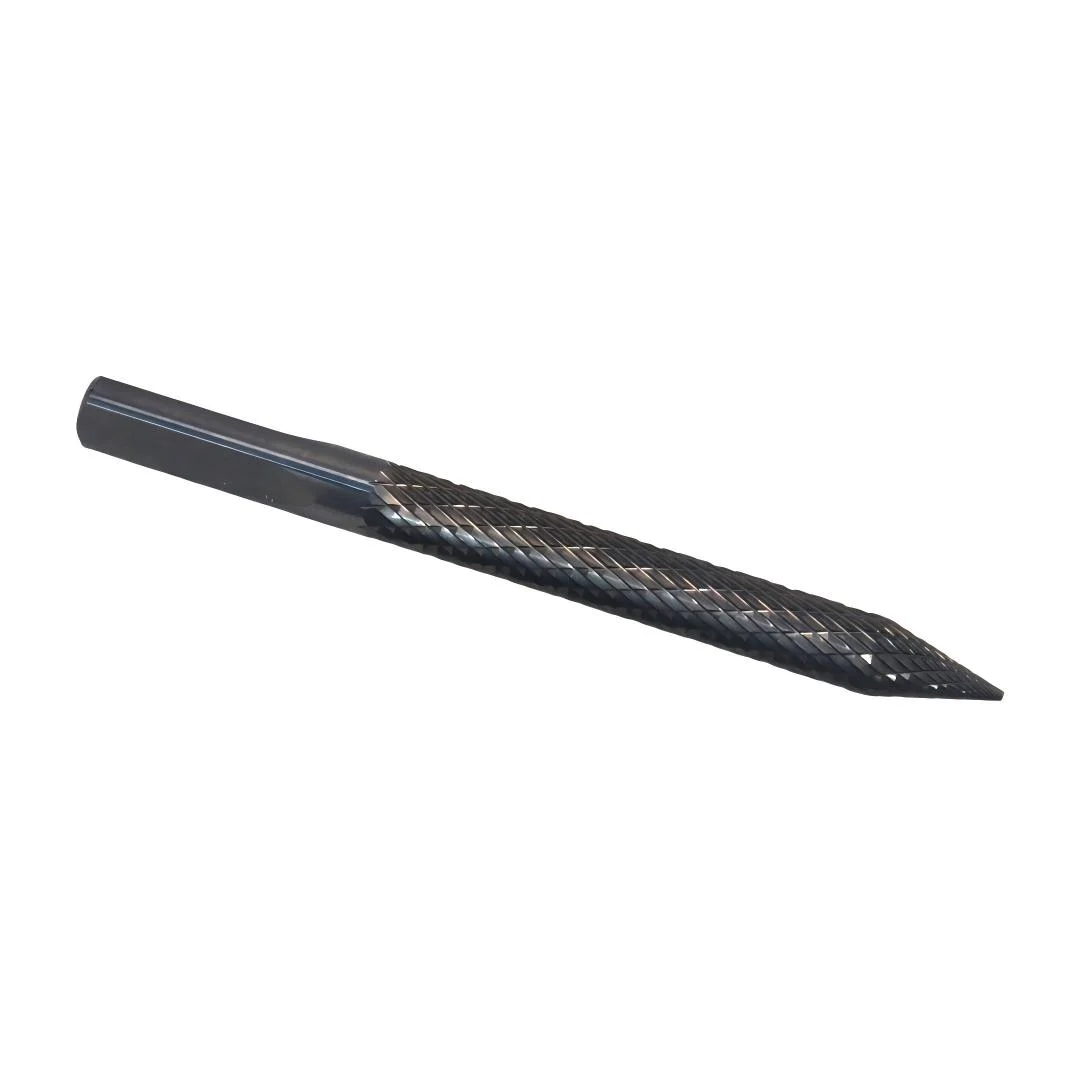

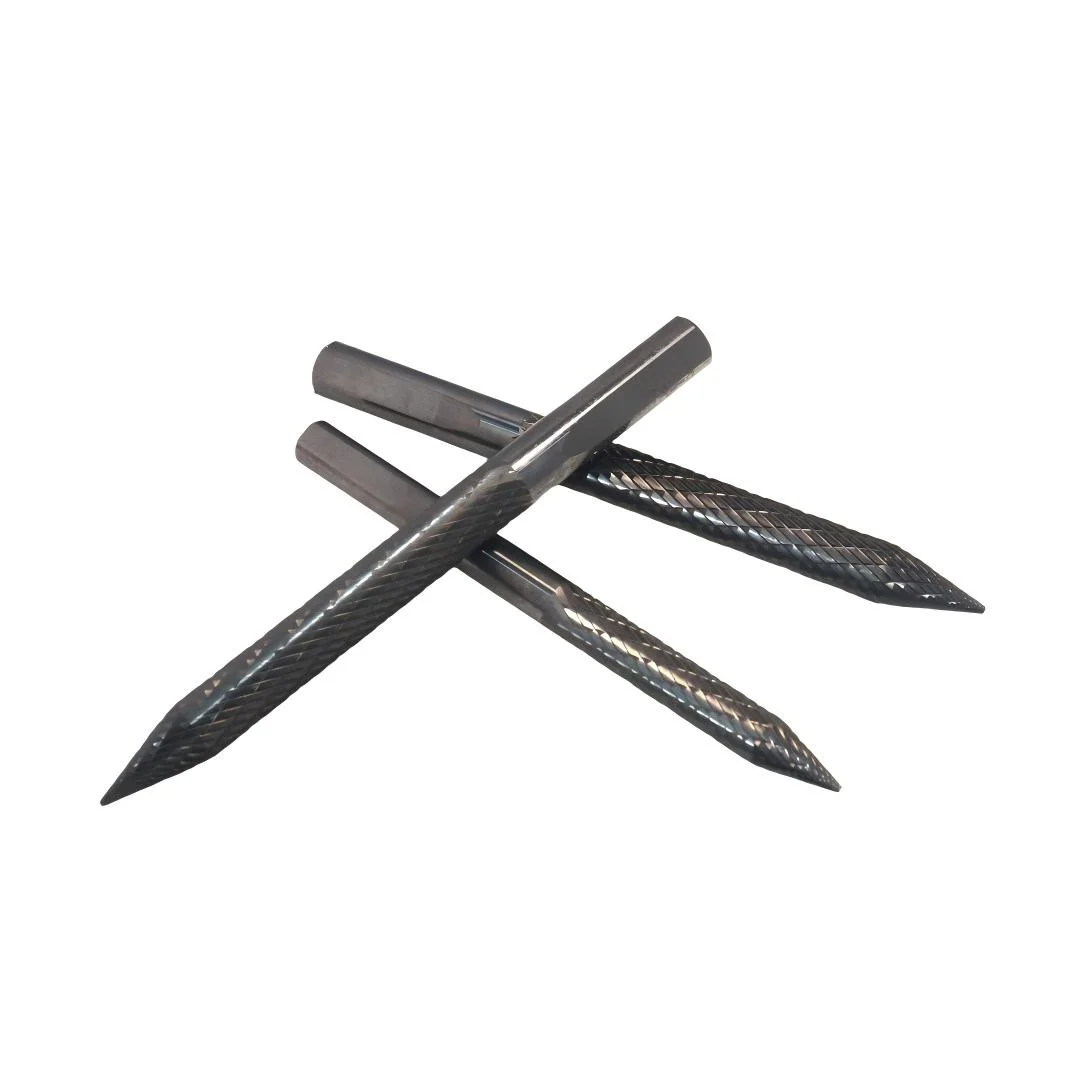

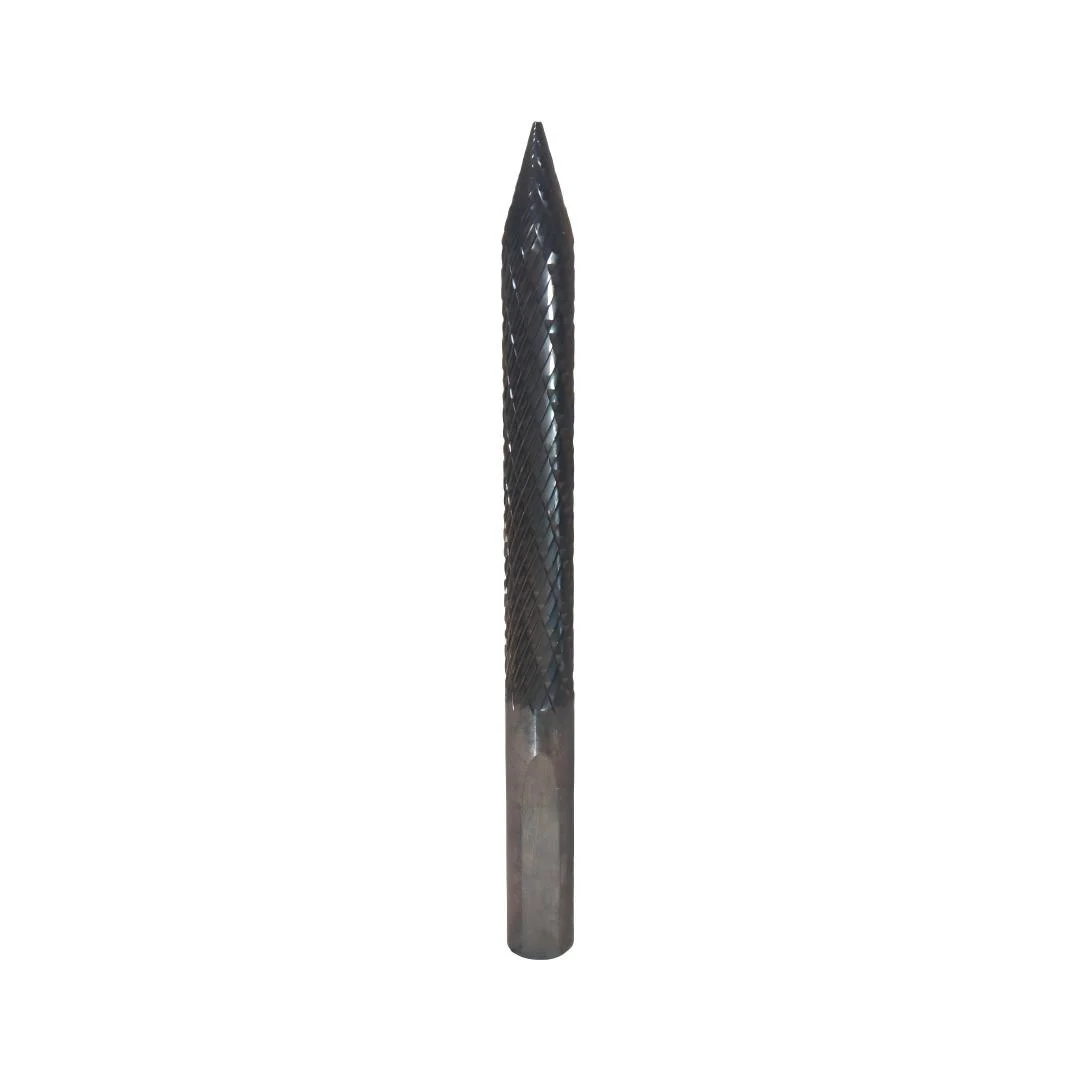

Carbide Tire Repair Reamers
Solid carbide tire repair reamers for cleaning and preparing puncture channels before mushroom plug and tire repair insert installation. Designed to remove damaged rubber, cut exposed steel cords, and create a clean, correctly sized repair hole with multiple diameters available for different repair plug systems.
Carbide Tire Repair Reamers
Persistools carbide tire repair reamers are specialized rotary cutting tools used in professional tire repair to prepare puncture channels before installing mushroom plugs, repair inserts, or other tire repair components.
Unlike conventional steel reamers, these tools are manufactured from solid tungsten carbide, providing high wear resistance and stable cutting performance when working through rubber, reinforcement layers, and exposed steel cords inside damaged tires.
The tool is used to clean and size the puncture channel so that the repair insert can be installed correctly.
Designed for Puncture Channel Preparation
When a tire is punctured, the damaged area may contain:
- Torn rubber
- Irregular hole edges
- Exposed steel cords
- Damaged reinforcement fibers
- Debris inside the puncture channel
The carbide reamer removes damaged material and cuts through exposed reinforcement, creating a cleaner and more controlled passage for the repair plug.
A properly prepared hole helps improve:
- Repair plug fit
- Installation consistency
- Contact between repair material and tire
- Repair stability
- Ease of plug insertion
Solid Tungsten Carbide Construction
The reamer is manufactured from a solid carbide rod rather than using a brazed carbide head.
This provides:
- High wear resistance
- Strong cutting edges
- Good dimensional stability
- Consistent cutting performance
- Long service life in repeated repair work
The carbide cutting geometry is designed specifically for tire repair rather than general metal deburring.
Matched to Repair Plug Sizes
Tire repair reamers are normally selected according to the diameter of the mushroom plug or repair insert being used.
Different repair systems therefore require different reamer diameters and working lengths.
Persistools can supply multiple standard and custom sizes to match:
- Mushroom plugs
- Tire repair stems
- Combination repair units
- Plug-and-patch systems
- Other professional tire repair inserts
The correct reamer size should be selected according to the repair material manufacturer’s recommended hole diameter.
Typical Applications
Carbide tire repair reamers are commonly used in:
- Passenger car tire repair
- Truck tire repair
- Commercial tire service
- Tire retreading workshops
- Professional puncture repair
- Automotive service centers
Different diameters, flute geometries, cutting lengths, and shank sizes can be supplied according to the repair system and equipment used.
| Reamer Diameter | Cutting Length | Shank Diameter | Material | Cut Type | Typical Application |
|---|---|---|---|---|---|
| Ø3 mm | Custom | 3 / 6 mm | Solid Tungsten Carbide | Tire Repair Cut | Small puncture repair |
| Ø4 mm | Custom | 3 / 6 mm | Solid Tungsten Carbide | Tire Repair Cut | Small mushroom plugs |
| Ø5 mm | Custom | 6 mm | Solid Tungsten Carbide | Tire Repair Cut | General tire repair |
| Ø6 mm | Custom | 6 mm | Solid Tungsten Carbide | Tire Repair Cut | Medium repair inserts |
| Ø8 mm | Custom | 6 / 8 mm | Solid Tungsten Carbide | Tire Repair Cut | Larger mushroom plugs |
| Ø10 mm | Custom | 8 / 10 mm | Solid Tungsten Carbide | Tire Repair Cut | Heavy-duty repair systems |
| Custom | Custom | Custom | Solid Tungsten Carbide | Custom | Special repair plug systems |
Product Type: Tire Repair Reamer
Material: Solid Tungsten Carbide
Application: Puncture Channel Cleaning / Reaming / Steel Cord Cutting
Matching: Mushroom Plug / Repair Stem / Plug-and-Patch Systems
Diameter: Standard and Custom
Cutting Length: According to Repair System
Shank: Standard / Custom
Customization: Diameter, cutting length, shank size, and flute geometry available on request.
What is a carbide tire repair reamer used for?
Why use tungsten carbide for tire repair reamers?
How do I choose the correct reamer diameter?
Can you manufacture custom tire repair reamers?
