Carbide Burrs

Carbide rotary burrs for deburring, weld removal, edge preparation, contouring, and surface finishing. Available in multiple head shapes, cut types, and metric or inch shank sizes for machining steel, stainless steel, cast iron, aluminum, and other metals.

Carbide Rotary Burrs for Metalworking

Persistools carbide rotary burrs are precision cutting tools designed for fast material removal, deburring, weld cleaning, edge preparation, contouring, and surface finishing.

The cutting heads are manufactured from solid tungsten carbide and are suitable for use with die grinders, pneumatic grinders, electric rotary tools, and other high-speed hand-held or CNC equipment.

Compared with conventional abrasive tools, carbide burrs remove material through defined cutting edges, providing efficient stock removal, better dimensional control, and long service life when used under suitable cutting conditions.

A wide range of head shapes, cut geometries, head diameters, and shank sizes is available to match different materials and machining requirements.

Multiple Cut Types

Different flute designs can be selected according to the workpiece material and required cutting behavior.

Single Cut
Provides controlled material removal and relatively smooth cutting. Commonly used for steel, cast iron, and general-purpose metalworking.

Double Cut
Creates smaller chips and provides faster stock removal with easier tool control. Suitable for deburring, weld removal, and general metal fabrication.

Aluminum Cut / Non-Ferrous Cut
Features wider flute spacing to improve chip evacuation and reduce loading when machining aluminum, copper, brass, plastics, and other non-ferrous materials.

Multiple Head Shapes

Carbide burrs are available in common shapes including:

Cylindrical
Cylindrical with end cut
Ball nose cylindrical

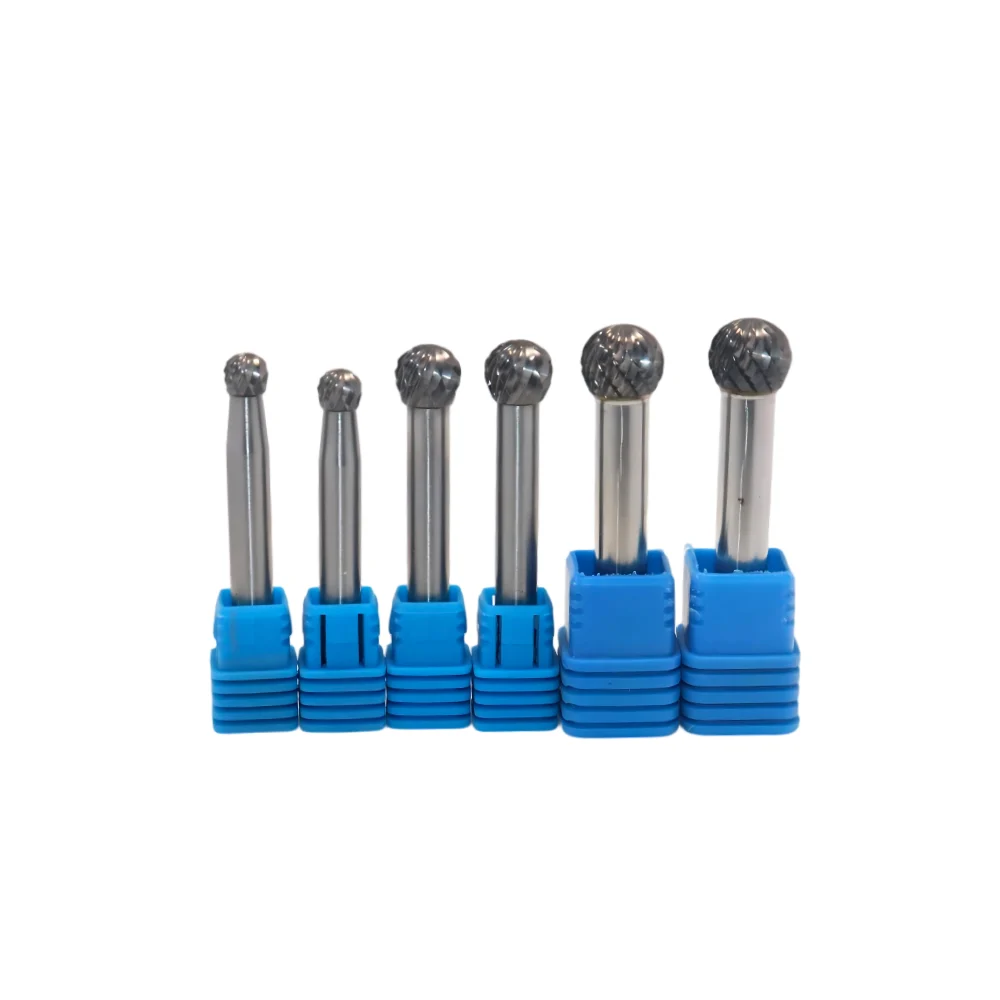

Ball
Oval
Tree with radius end
Tree with pointed end

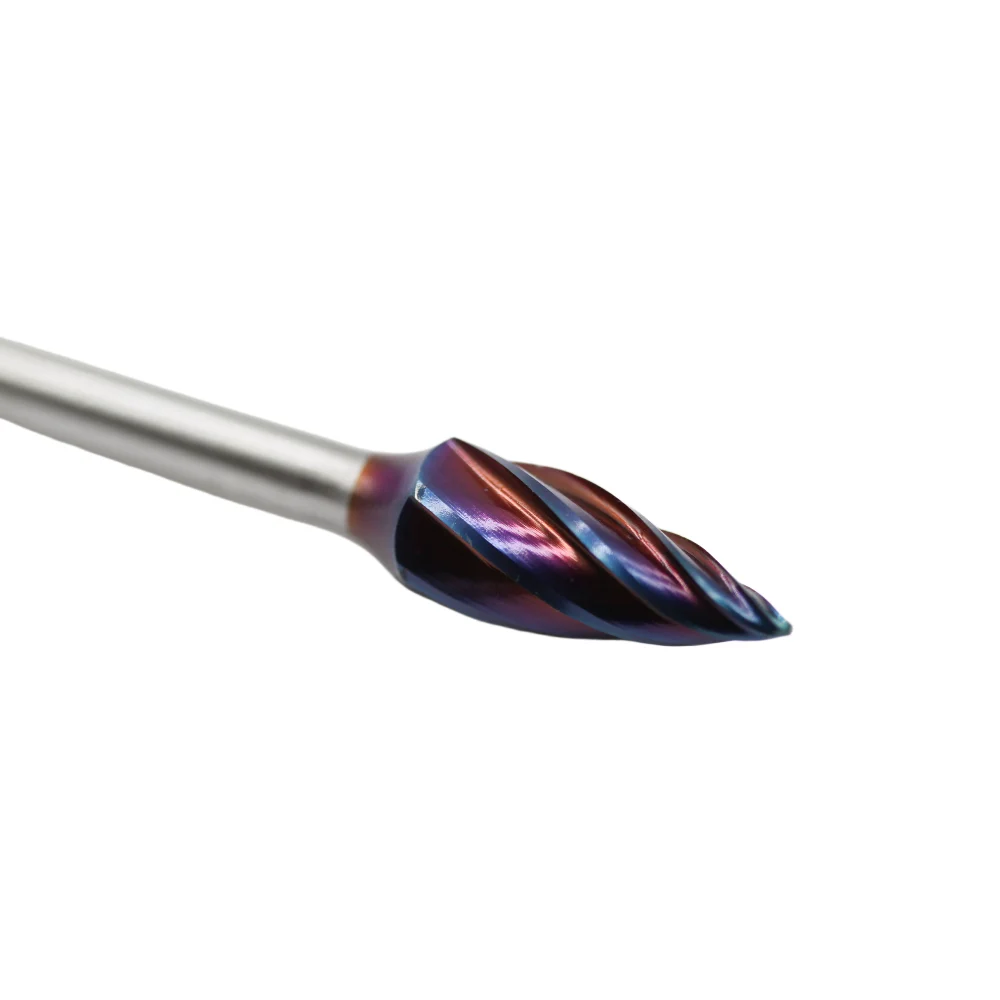

Flame
Cone
Tapered radius

Different shapes allow the cutter to reach flat surfaces, curved profiles, narrow grooves, internal corners, chamfers, and difficult-to-access areas.

Typical Applications

Persistools carbide burrs are commonly used for:

Deburring machined components
Weld bead removal
Edge preparation
Grinding and shaping
Die and mold finishing
Porting and contour work
Casting cleanup
Surface blending
Chamfering
General metal repair and fabrication

Available metric and inch shank options make the burrs suitable for different markets, machines, and tool-holding systems.

Custom head shapes, flute geometries, carbide grades, dimensions, and packaging can also be supplied according to specific application requirements.

Head Shape	Common Code	Head Diameter	Shank Diameter	Cut Type	Typical Application
Cylindrical	SA	3–16 mm	3 / 6 mm / 1/8″ / 1/4″	Single / Double	Flat surfaces, edge work
Cylindrical with End Cut	SB	3–16 mm	3 / 6 mm / 1/8″ / 1/4″	Single / Double	Flat surfaces, internal corners
Ball Nose Cylindrical	SC	3–16 mm	3 / 6 mm / 1/8″ / 1/4″	Single / Double	Contours, rounded profiles
Ball	SD	3–16 mm	3 / 6 mm / 1/8″ / 1/4″	Single / Double	Concave surfaces, contouring
Oval	SE	3–16 mm	3 / 6 mm / 1/8″ / 1/4″	Single / Double	Curved surfaces
Tree, Radius End	SF	3–16 mm	3 / 6 mm / 1/8″ / 1/4″	Single / Double	Narrow contours, rounded areas
Tree, Pointed End	SG	3–16 mm	3 / 6 mm / 1/8″ / 1/4″	Single / Double	Angled profiles, narrow areas
Flame	SH	3–16 mm	3 / 6 mm / 1/8″ / 1/4″	Single / Double	Fine contouring
Cone	SJ / SK	3–16 mm	3 / 6 mm / 1/8″ / 1/4″	Single / Double	Chamfering, beveling
Taper Radius	SL	3–16 mm	3 / 6 mm / 1/8″ / 1/4″	Single / Double	Narrow curved profiles

Head Diameter: Approx. 3–16 mm
Shank Diameter: 3 mm / 6 mm / 1/8″ / 1/4″
Cut Types: Single Cut / Double Cut / Aluminum Cut
Material: Solid Tungsten Carbide Head
Shank: Steel or carbide shank depending on design
Available Shapes: SA / SB / SC / SD / SE / SF / SG / SH / SJ / SK / SL and custom shapes
Custom dimensions, flute geometries, shank sizes, and packaging are available on request.

What are carbide rotary burrs used for?

Carbide rotary burrs are used for deburring, weld removal, grinding, contouring, edge preparation, chamfering, and surface finishing. They are widely used in metal fabrication, casting, mold making, automotive repair, and general machining applications.

What is the difference between single cut and double cut carbide burrs?

Single cut burrs provide more controlled cutting and relatively smooth material removal. Double cut burrs produce smaller chips and generally offer faster stock removal with easier handling, making them popular for general deburring and weld removal.

Which carbide burr should be used for aluminum?

For aluminum and other non-ferrous materials, an aluminum cut or non-ferrous cut burr is recommended. The wider flute spacing improves chip evacuation and helps reduce material loading on the cutting edges.

What shank sizes are available?

Common shank sizes include 3 mm, 6 mm, 1/8″, and 1/4″. Different head diameters, head shapes, flute geometries, and custom dimensions can also be supplied according to machine and application requirements.
